Wi-Fi SOC Chip

TXW828

Highly integrated low-power audio-video wireless SoC

Built for cameras, IPC, doorbells, smart locks, recorders, baby monitors, and display-enabled wireless audio-video terminals, integrating Wi-Fi, BLE/SLE, ISP, H.264/MJPEG, multimedia interfaces, and security acceleration.

Online DocsProduct Selector

Integrated Wireless SoC for Audio-Video Terminals

TXW828 is a low-power, high-performance, highly integrated audio-video wireless SoC chip. Internally integrating 2.4GHz Wi-Fi+BLE, high-performance ISP image processing, and H.264/MJPEG encoding/decoding, it features excellent RF performance, superior image processing capabilities, coding quality, and low bitrates. Additionally, it integrates a security algorithm acceleration engine and offers comprehensive peripheral interfaces: Audio ADC/DAC, MIPI CSI, MIPI DSI, DVP, LCD, RMII MAC, USB2.0 High Speed Host/Device, SDMMC Host, IIS, PDM, and other rich peripheral interfaces.

TXW828 supports running programs on SPI Flash. It supports RTOS and third-party components, and provides an open and easy-to-use development and debugging environment.

TXW828 provides mainstream packaging formats including QFN68 and QFN80, supporting built-in PSRAM.

Application Scenarios:

  • Multi-camera IPC/Camera/Recorder

  • Doorbell, Door Lock

  • Other Wireless Audio-Video + Display Applications

TXW828 targets integrated products for wireless audio-video, cameras, and display screens.

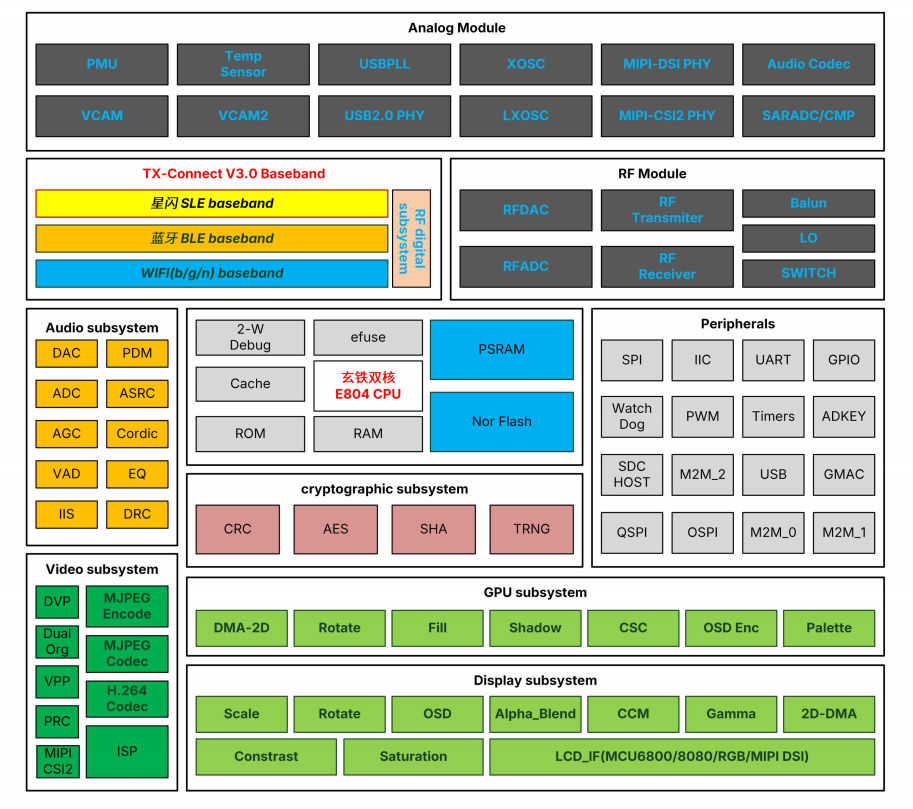

TXW828 High-Integration Low-Power Audio-Video Wireless SoC Scenario Diagram

Features

Highly integrated low-power audio-video wireless SoC

Highly integrated low-power audio-video wireless SoC

The TXW828 series is designed as a low-power, high-performance, highly integrated wireless audio-video SoC. It integrates 2.4 GHz Wi-Fi, BLE, SLE, a high-performance ISP, H.264/MJPEG codec capability, security acceleration, and rich peripheral interfaces for multi-camera IPCs, cameras, recorders, doorbells, smart locks, baby monitors, walkie-talkies, and display-enabled wireless audio-video products.

Complete wireless connectivity with flexible network modes

The chip supports IEEE 802.11 b/g/n with a 1T1R architecture, 5/10/20/40 MHz bandwidth, and Wi-Fi data rates up to 150 Mbps. Built-in PA, LNA, and RF switch resources support STA, AP, AP+STA relay, STA+STA, and other modes, with WPA/WPA2/WPA3 security. BLE fast provisioning and Wi-Fi/BLE PTA coexistence are also supported.

Complete wireless connectivity with flexible network modes
Image processing and codec capability for video products

Image processing and codec capability for video products

The TXW828 series supports H.264 encoding and decoding up to 1920×1080@30fps, as well as MJPEG codec capability. The ISP supports up to 1920×1080@30fps with dual-channel time-division reuse, 3A, 2D/3D noise reduction, bad pixel correction, lens shading correction, image enhancement, and motion detection for camera, IPC, doorbell, and smart-lock video capture and transmission scenarios.

Dual-core RISC architecture for control and media workloads

The chip integrates one XuanTie E804FD processor and one XuanTie E804D processor with a maximum frequency of 240 MHz. It supports a RISC architecture, 32-bit data, mixed 16/32-bit instructions, DSP instructions, a single-cycle hardware multiplier, and vector interrupt control. CPU0 also supports single-precision floating-point operations, making the platform suitable for wireless protocol, audio-video, peripheral control, and system scheduling tasks.

Dual-core RISC architecture for control and media workloads
Rich interfaces for camera, display, storage, and networking products

Rich interfaces for camera, display, storage, and networking products

The TXW828 series integrates MIPI CSI, MIPI DSI, DVP, LCD, USB 2.0 High Speed Host/Device, RMII MAC, SDMMC Host, IIS, PDM, Audio ADC/DAC, and other interfaces. It supports execution from SPI Flash, RTOS and third-party components, and development/debug tooling. E08FL integrates 8 MB PSRAM, while E016FL integrates 16 MB PSRAM for different cost and performance tiers.

Parameters

ChipChip ModelControllerFrequencyPackageGPIORAM/ROMFlashInterfacesVoltage
T
TXW828
TXW828-E016FLCK804DF CK804D240*2QFN8057368*1024N/APWM, RTC, UART, SPI, IIC, RMII3 ~ 3.6
T
TXW828
TXW828-E08FLCK804DF CK804D240*2QFN8057368*1024N/APWM, RTC, UART, SPI, IIC, RMII3 ~ 3.6
T
TXW828
TXW828-C08FLCK804DF CK804D240*2QFN6846368*1024N/APWM, RTC, UART, SPI, IIC, RMII3 ~ 3.6
